OSHA Max Package

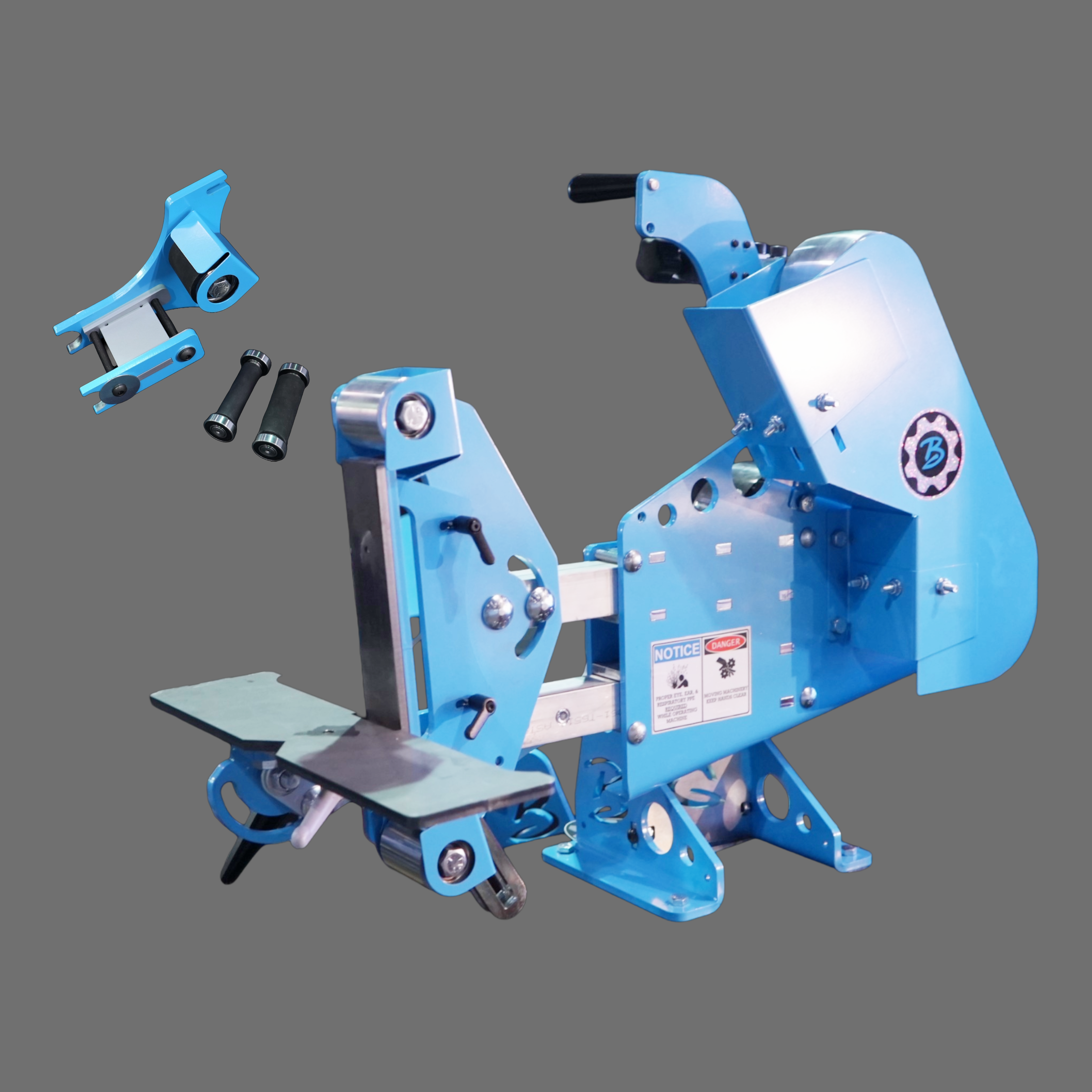

The OSHA Max Package
OSHA Compliant 29 CFR 1910.212.
Powder Coated Tilting chassis - For a more ergonomic workstation with completely Tool-Less Changeover
INCLUDED ATTACHMENTS;

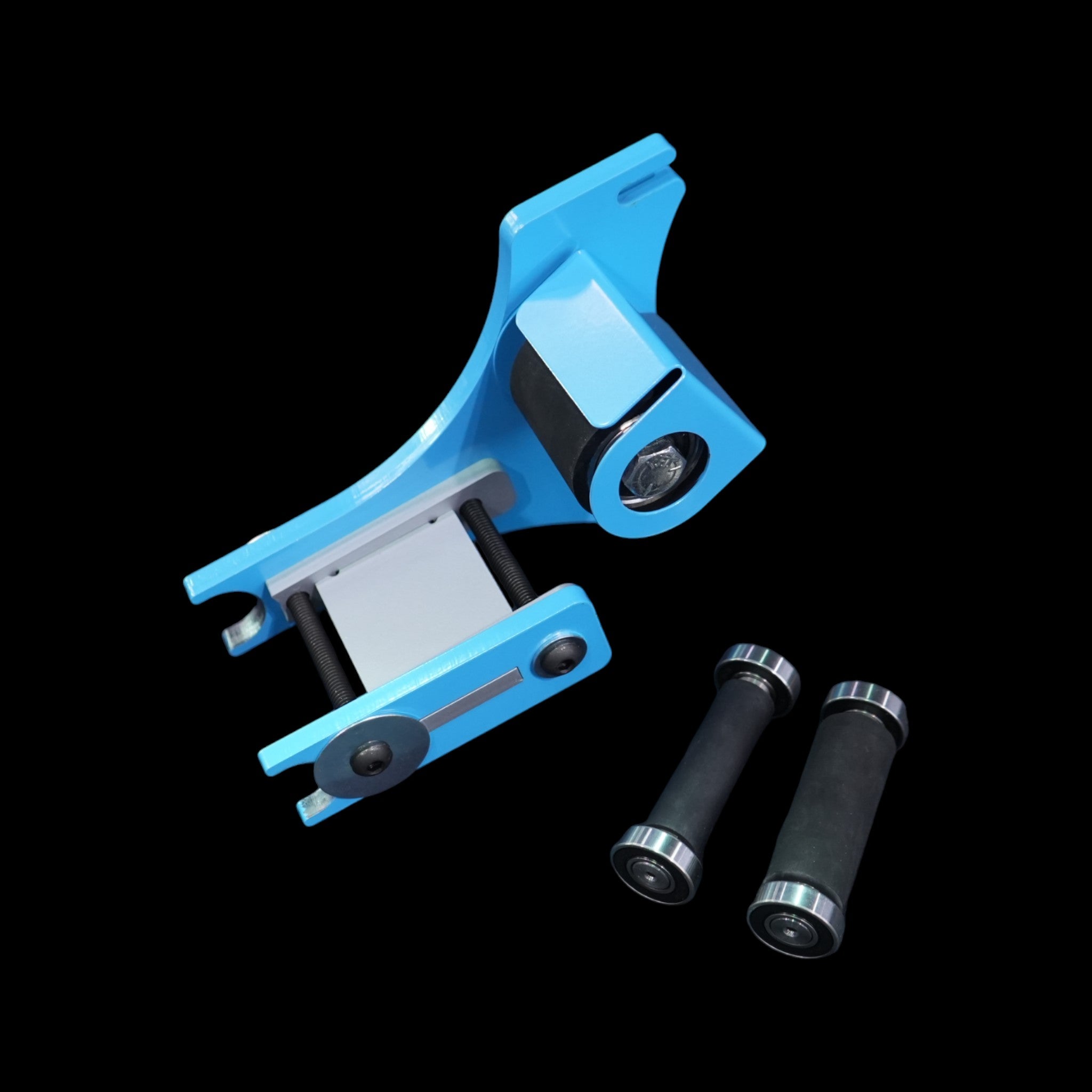

Small Wheel Attachment:
Includes: 3/4” rubber wheel, 1” rubber wheel
Used for small inside radius curves, texturing, and shaping. The rubber coated wheels eliminate the belt bump and provide a smooth and even finish. Includes a guide wheel to ensure the belt wraps tight to the small wheel.
Get the 1/2" steel and 1 1/2" rubber small wheels for this attachment here.
Flat Platen
The Flat Platen is a combination of a flat platen and slack belt. This Platen has a 2" aluminum idler wheels and a 10" long platen for grinding flat surfaces and bevels.
Adjustable Work Rest
The adjustable Work rest has been designed for maximum tilting in both directions as well as height adjustability. It is great for grinding at a wide variety of angles. The work rest bracket is constructed of 5/16 and a 3/8 thick plate steel top to ensure durability and stability. The double pinch design was chosen to eliminate accidental rotation typically observed with other adjustable tool rest designs that use a round bar and set screws for adjustment. The adjustment handles also allow full adjustment without the need of tools for ease of use and maximum efficiency.
Belts not included. Shop our collection of Belts Here
Motor Options:
Variable Speed 2HP: Works with 110V / 115V or 220V / 230V single phase voltage. The variable speed control KBAC 27D includes the wiring kit and start/stop switch. The motor is a 2HP 230/460V 3-Phase 60 HZ 6.2/2.9A 3600 RPM TEFC.
Notes:
The variable speed control also serves as a phase converter needed to operate the 2HP 3 phase motor included in the package. YOU DO NOT NEED 3 PHASE VOLTAGE IN YOUR SHOP.
Powering the unit with 110V / 115V reduces motor output from 2HP to 1.5HP
Variable Speed 3HP: Works with 220V single phase only. The variable speed control KBAC 29 includes wiring kit and start/stop switch.
2x72 Stand:
No Stand: Supply your own table or pedestal to mount grinder to.

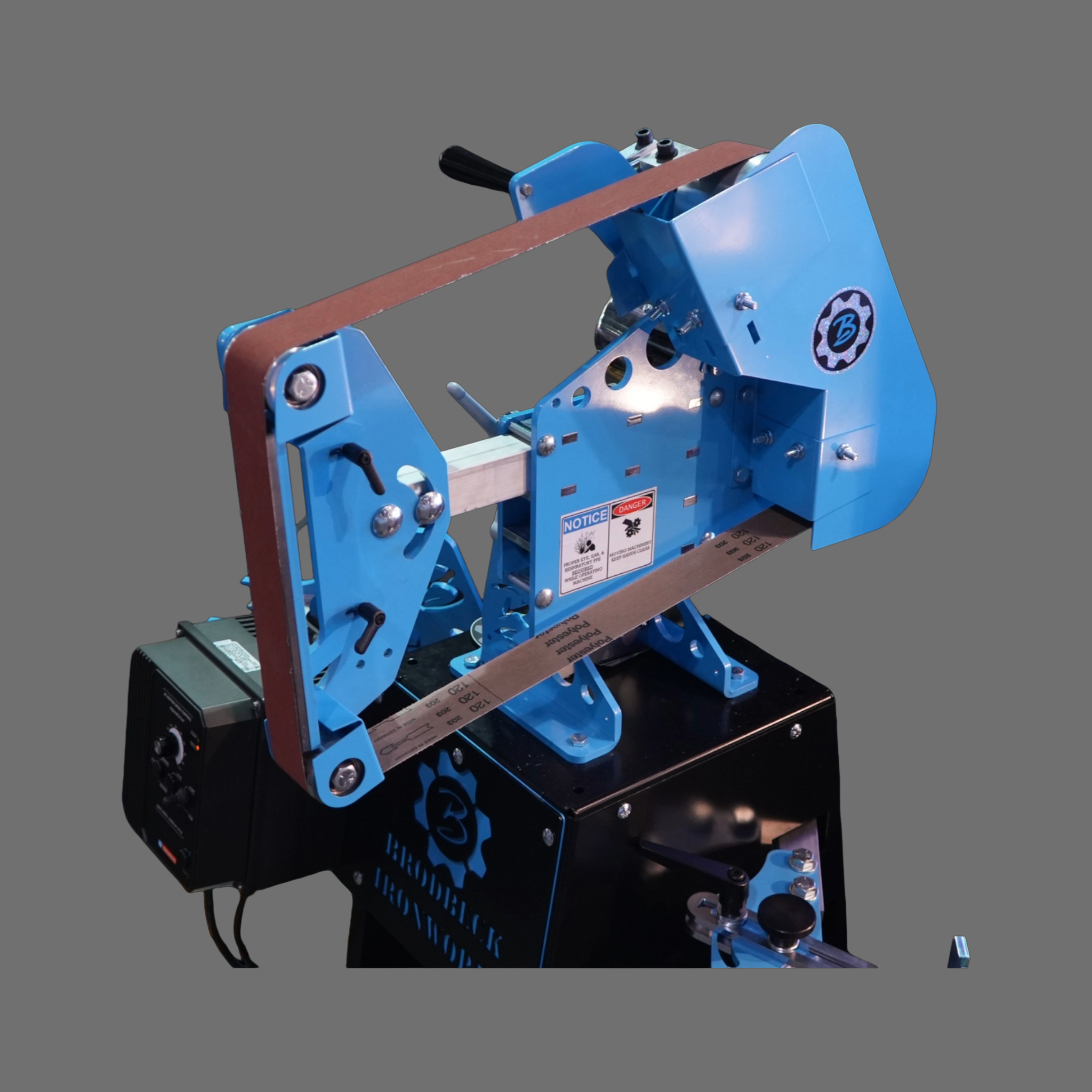

Powder Coated Height Adjustable Stand :
Four Flip up style 2" smooth rubber castors
Leveling feet.
Slots to place all of your attachments
VFD Mount.
Assembly required.
Setup
These grinders are assembled, and tuned in our shop. Minimal final assembly is required due to shipping limitations. The required assembly consist of securing the motor, installing the drive wheel and tracking wheel, installing the guarding and positioning it. The installation should take no more than 10-20 min.
Use assembly instruction here.
Contact us if you have any questions.
